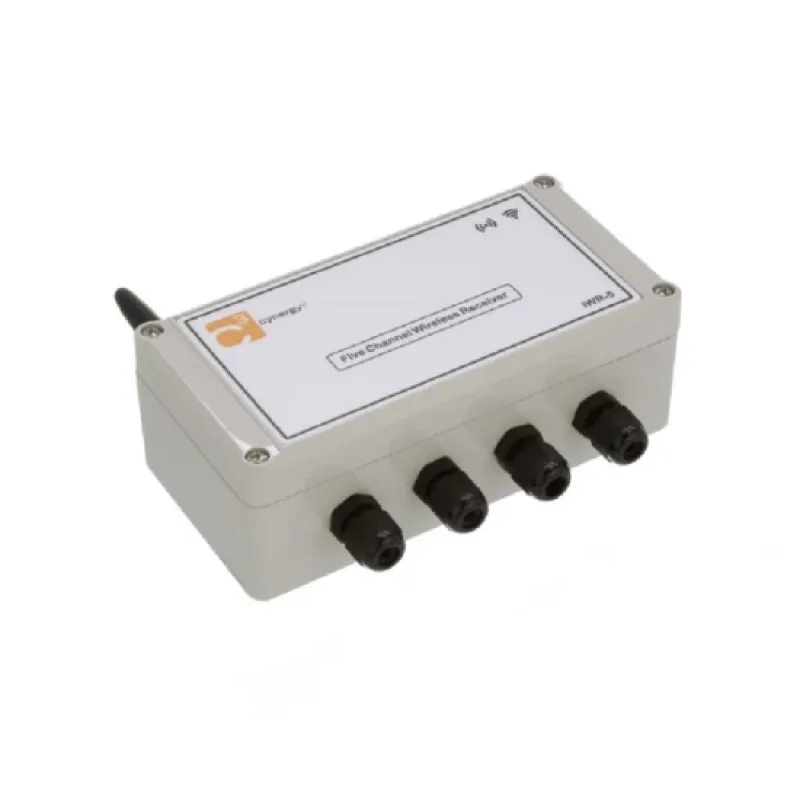

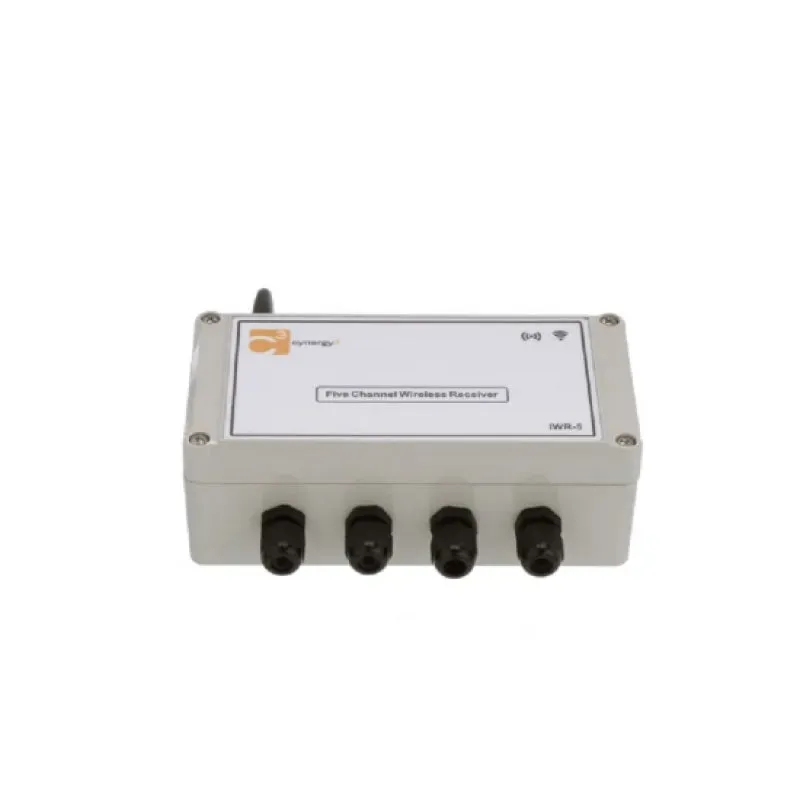

The IWR-5 is a five channel receiver designed to pair with the IWPT series of wireless pressure transducers to form a cost effective replacement of the traditional wired pressure transducer. This offers a low cost solution to inaccessible or expensive installation environment The receiver has user selectable voltage or mA outputs corresponding to the calibrated pressure range of the remote Wireless Pressure Transducers and 5A rated changeover contacts for alarm functionality. User channel configuration is possible with the use of the program, IWR-Set, which ensures minimal user set-up time and thus ensures a simple solution to multi-channel pressure measurement applications. With the standard 0dBI antenna, a line-of-sight range of up to 500m can be

achieved and, using the optional 3dBI antenna, up to 750m (LOS) is achievable
